World Championship winning wheels. Best components and finest Swiss engineering make lowest aero drag with unmatched stability in the wind possible.
Developed for the DECATHLON AG2R LA MONDIALE TEAM, the HADRON² Ultimate 380 wheels are our fastest wheels for steep climbs and a mix of aero and climbing.
Top level aero performance on any course, in any conditions, for any rider. This 50mm profile depth is designed to provide best balance of performance across the widest spectrum of riding, from the mountains to time-trial / triathlon.
Maximum aerodynamic performance for the widest array of conditions. With 62mm profile depth, the wheel chosen for fast racing by Pro cycling teams or by triathletes for windy days and hilly courses.
The multiple World Championship winning wheel, 80mm deep profile, specific for time trial, triathlon, and setting new world records.
- Tubes and tires are already pre-mounted.
- Continental AERO 111 26mm front tire. A revolution in aerodynamics, reducing drag massively at all speeds in cross-wind conditions, with improved stability and handling. Best in class rolling resistance, grip and puncture resistance.
- Save €100 when ordering the front and rear Wheel Tire System.
- Tubes and tires are already pre-mounted.
- Continental GP 5000 S TR 28mm rear tire. Best in class rolling resistance, grip and puncture resistance.
- Save €100 when ordering the front and rear Wheel Tire System.
Loading price...
Double Wheel Bag
CHF 62.00
Out of stockDescription
Weight
Front wheel:
- HADRON² Ultimate 380: 587g
- HADRON² Ultimate 500: 670g
- HADRON² Ultimate 625: 772g
- HADRON² Ultimate 800: 815g
Rear wheel:
- HADRON² Ultimate 380: 718g
- HADRON² Ultimate 500: 800g
- HADRON² Ultimate 625: 889g
- HADRON² Ultimate 800: 944g
- HADRON² Ultimate Disc: 1100g
Rim
Hub
Spokes
Nipples
Bearings
Compatibility
Safety notice
Axle size
Tyre recommendation
Package includes
User manual
Wheel performance
At Swiss Side, transparency is the fundament of our goal to deliver exceptional value and make you fastest. We share the insights from our wind tunnel testing and extensive research, empowering you with the knowledge to achieve unparalleled speed and efficiency.
HADRON² Ultimate
Wheel Set Time Gain Summary
| Model | Speed | Power | Drag Reduction | 40km | 90km | 180km |
| HADRON2 Ultimate 500 set | 45km/h | 350W | 14.2W | 0 min 48 sec | 1 min 49 sec | 3 min 38 sec |
| 35km/h | 180W | 6.7W | 1 min 00 sec | 2 min 26 sec | 4 min 31 sec | |
| HADRON2 Ultimate 625 set | 45km/h | 350W | 16.7W | 0 min 57 sec | 2 min 08 sec | 4 min 17 sec |
| 35km/h | 180W | 7.9W | 1 min 11 sec | 2 min 40 sec | 5 min 20 sec | |
| HADRON2 Ultimate 800 set | 45km/h | 350W | 18.0W | 1 min 02 sec | 2 min 19 sec | 4 min 37 sec |
| 35km/h | 180W | 8.5W | 1 min 17 sec | 2 min 53 sec | 5 min 45 sec | |
| HADRON2 Ultimate 800 / HADRON2 DISC | 45km/h | 350W | 19.8W | 1 min 08 sec | 2 min 33 sec | 5 min 06 sec |
| 35km/h | 180W | 9.3W | 1 min 24 sec | 3 min 10 sec | 6 min 20 sec |
The time gain is relative to a standard aluminum wheel set.
Learn more about the performance comparison of our HADRON² Ultimate and HADRON² Classic wheels.

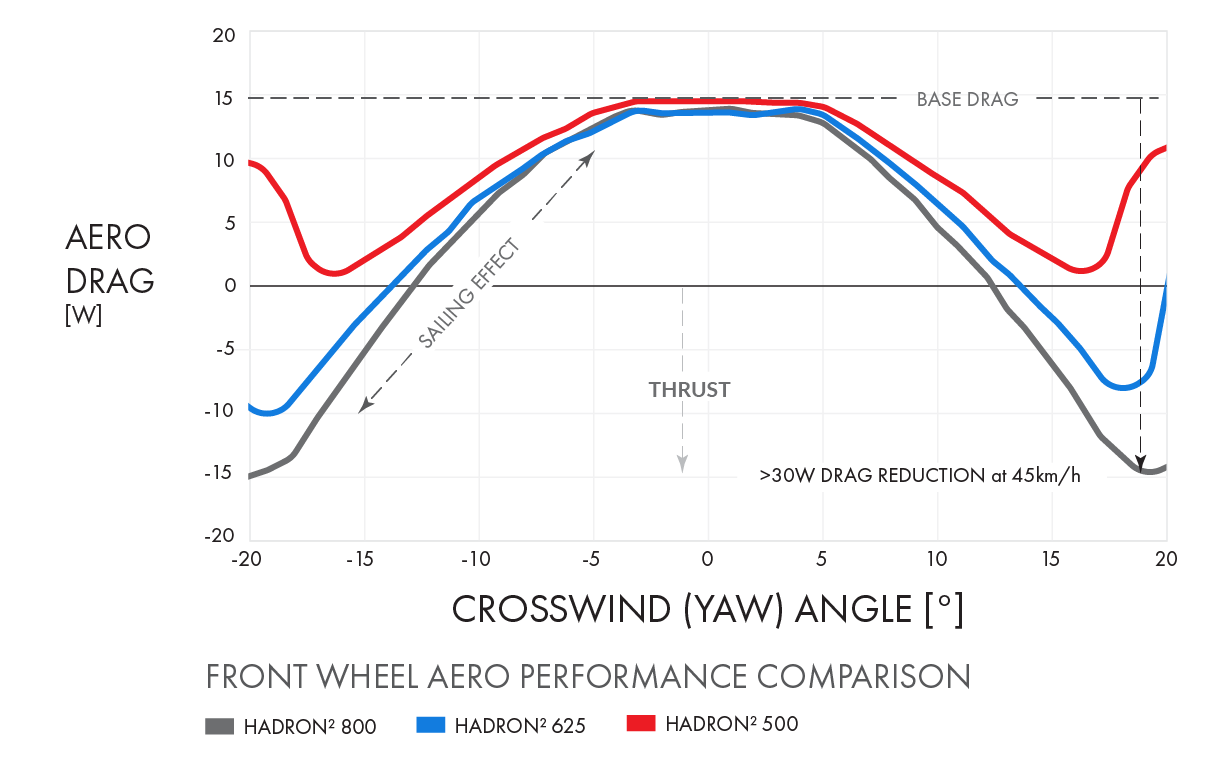

Front wheel aero drag performance with crosswind
- X axis: Crosswind in degrees. The angle of attack at which the wind arrives from the left or right side is defined in degrees as the Crosswind (yaw) angle. The negative numbers represent the angles when the wind is coming from the left side, the positive numbers represent the angles when the wind is coming from the right side.
- Y axis: Aero Drag measured in Watts
- Base drag: The Aero Drag at 0 degrees (wind purely from the front).
- Thrust: The angle from which the wheel generates negative drag and actually pushes you forwards.
- Sailing effect: The drag reduction produced with increasing cross-wind angle.
- We compared different rim depths of the Swiss Side Hadron2 front wheels: 500 (red), 625 (blue), and 800 (grey).

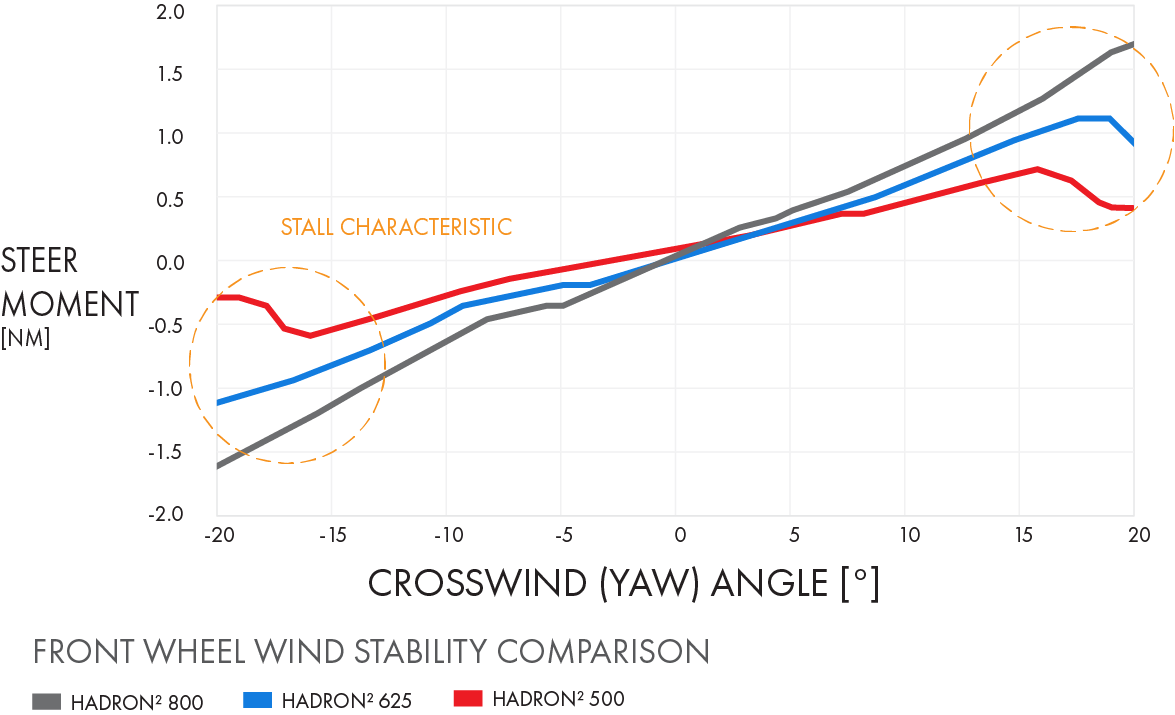

Front wheel aero stability with crosswind
- X axis: Crosswind in degrees = Crosswind (yaw) angle [°]. The angle of attack at which the wind arrives from the left or right side is defined in degrees as the Crosswind (yaw) angle. The negative numbers represent the angles when the wind is coming from the left side, the positive numbers represent the angles when the wind is coming from the right side.
- Y axis: Steering moment in Newton Meters
- The front wheel steering moment is the force that a cyclist feels in the handlebars when crosswinds hit the front wheel. Through our research and extensive testing, we have determined the characteristics which lead to a stable and confident feeling from the front wheel. These are shown in the graph with a close to linear steering moment curve without sudden change at the stall point. The stall point is when the wind angle is too high, and the airflow can no longer stay attached to the wheel.
- We compared different rim depths of the Swiss Side Hadron2 front wheels: 500 (red), 625 (blue), and 800 (grey).
